Creating content with R Markdown

A brief tutorial

Matthew Crump

10/31/2019

What is R Markdown?

Let’s take the R Markdown quick tour from RStudio https://rmarkdown.rstudio.com/authoring_quick_tour.html

In brief, R Markdown combines plain text with R code, allowing both to be outputted to a variety of document types, formats and styles (e.g., APA papers, slides, posters, etc.)

The definitive R Markdown guide

For a comprehensive guide to R Markdown see the definitive guide:

https://bookdown.org/yihui/rmarkdown/

and, a nice guide to basic markdown syntax: https://www.markdownguide.org/basic-syntax/
bells and whistles: https://holtzy.github.io/Pimp-my-rmd/

R Markdown and reproducible science

R Markdown is a good option for reproducible science.
R Markdown documents can contain all of the text for a manuscript, and all of the code used to run analyses and report results, all in one place.
Thus, if you share your research in R markdown, someone else should be able to reproduce exactly what you did.

Creating a new R Markdown document from RStudio

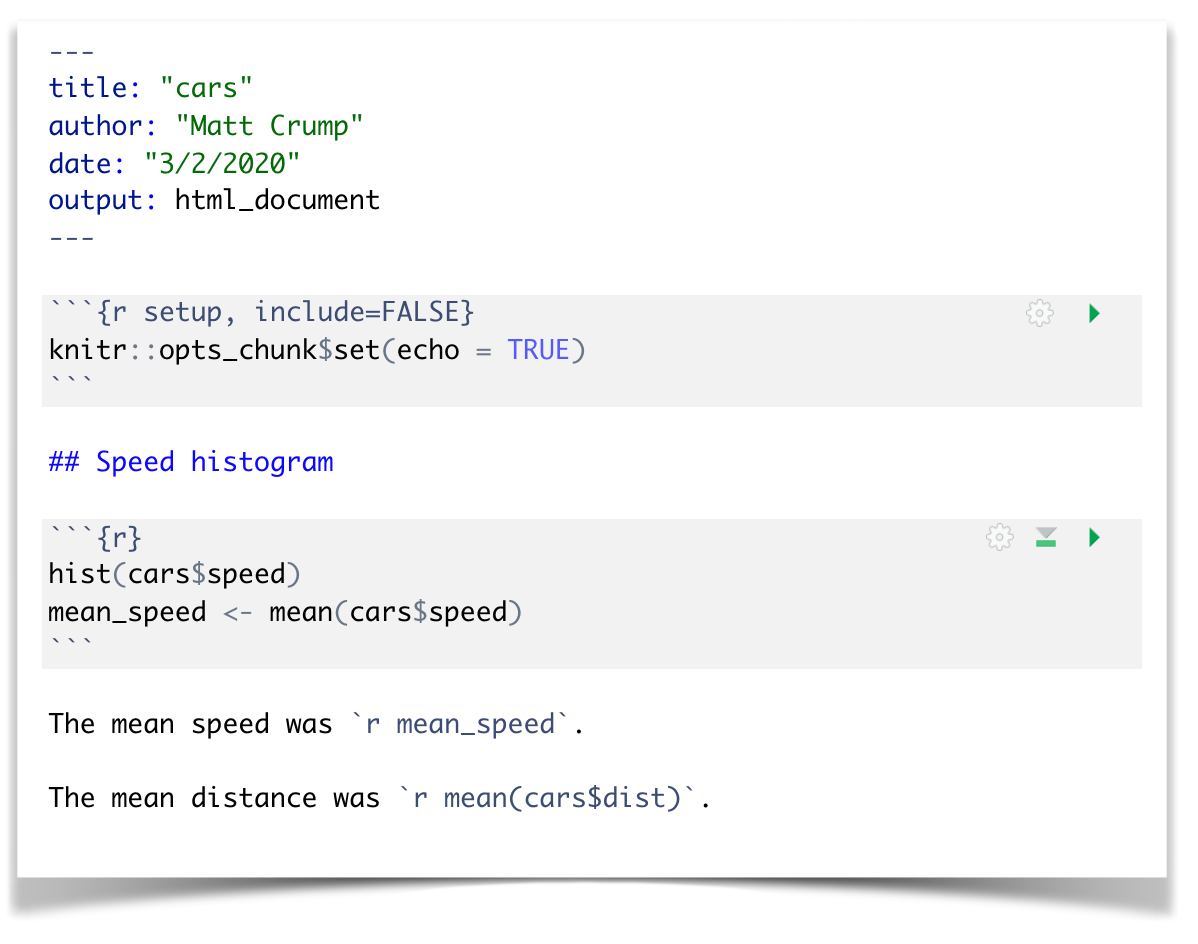

Example: Reproducible analysis with R Markdown

Goals:

Create a new R markdown document
Load some data
Show a figure, and report some descriptive statistics

R Markdown details

YAML Front Matter
Setup Chunk
R code snippets
Code snippet knitr options
Tips and tricks

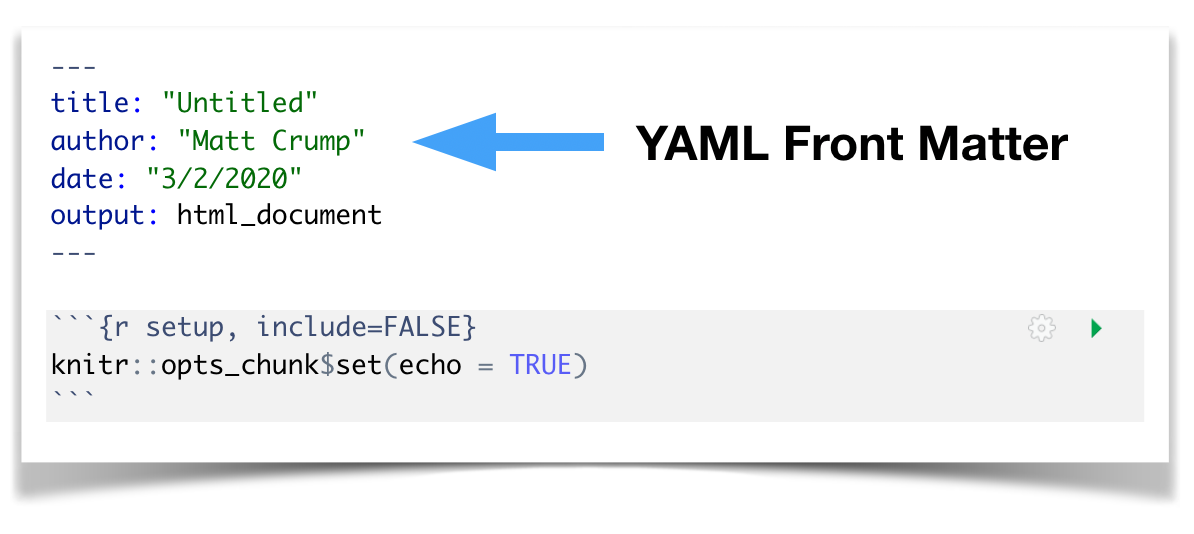

YAML Front matter

“YAML Ain’t Markup Language”

YAML is used to declare global parameters for the document.

This often includes title, author, bibliography files, and output formats.

There may be many more parameters depending on the template file used for the R Markdown document.

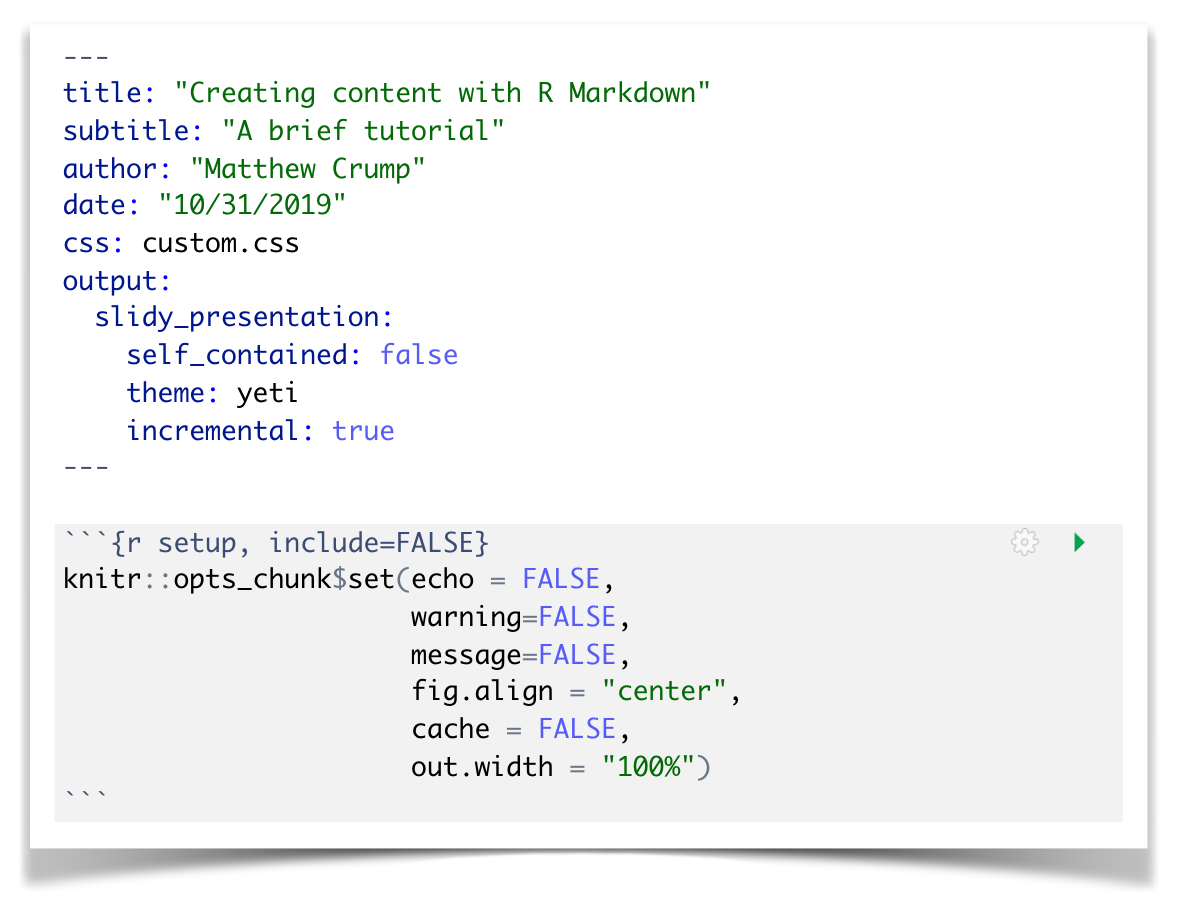

Setup chunk

Set defaults for all R code chunks in setup chunk at the beginning

Defaults can be modified for individual chunks later on.

echo = FALSE, prevents displaying R output
warning = FALSE, prevents printing of R warnings
message = FALSE< prevents printing of R messages (e.g., fairly common when loading some packages)
fig.align = “center”, all figures will be center aligned
cache = FALSE, turns off caching of results
out.width = “100%”, figure width is 100% of screen

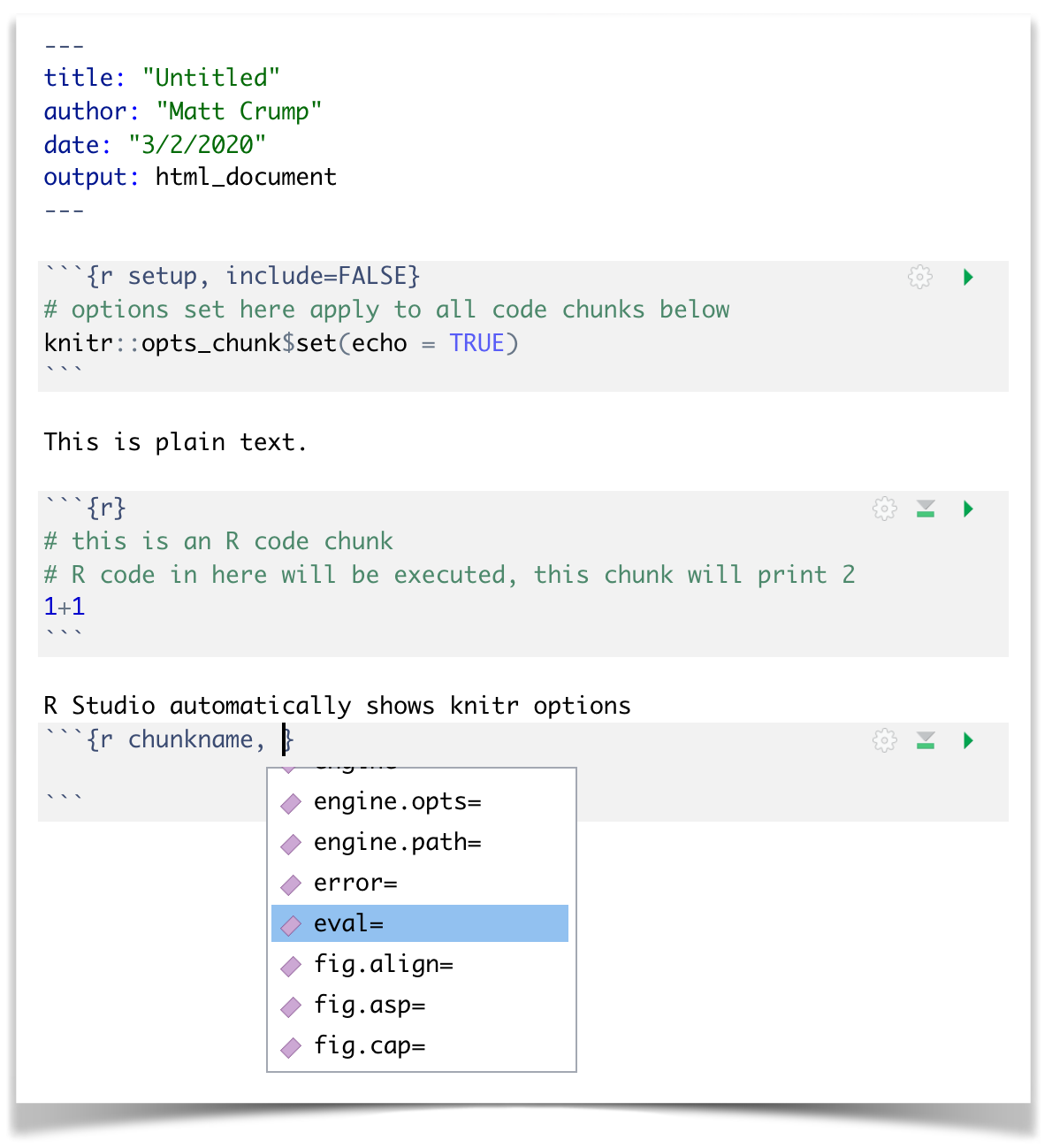

R Code snippets

Correctly defined code-chunks appear in a grey-box
Option-command-I to automatically create chunk in R Studio (Ctrl-Alt-I on PC)
Press play button to run the chunk. Output appears below the chunk in the editor window.

Anatomy of a code chunk

Knitr output options

knitr is the engine that converts .Rmd files to other file types. Each R code chunk is processed by knitr, and can take on options to control outputs.

echo=TRUE sets the default to print all remaining code blocks to the output, FALSE sets the default to not print the code blocks
warning = FALSE turns off printing of warnings
message = FALSE turns off printing of messages, these commonly occur when you load a package, where you receive a message that the package was loaded
eval = FALSE sets the default to NOT evaluate the code chunk as R Code. This will not run the code block, but the code block will still print if echo=TRUE
error=TRUE normally the knit fails when there is an error in the code. If you set error=TRUE the knit will complete, and return an error message for code blocks with errors.

knitr figure output options

The following setup options are useful for figure output.

fig.width = 3 sets the default width in inches for all figures
fig.height = 3 sets the default height in inches for all figures
fig.path = "myfigs/" defines folder where figure files will be saved. This will be relative to your current working directoy
dev = c("pdf", "png") tells knitr to output both .png, and .pdf versions of the figure. The .pdf contains vector graphics, meaning the figure can be resized without pixelization.

Knitting (press knit to compile your document)

IMPORTANT KNITTING INFO

Knitting is done in a separate R session behind the scenes
Code snippets are compiled in order from top-to-bottom
Knitting can be automated with the knitr::render() function, pressing the knit button in RStudio is a built-in way to call the render function for the current document.

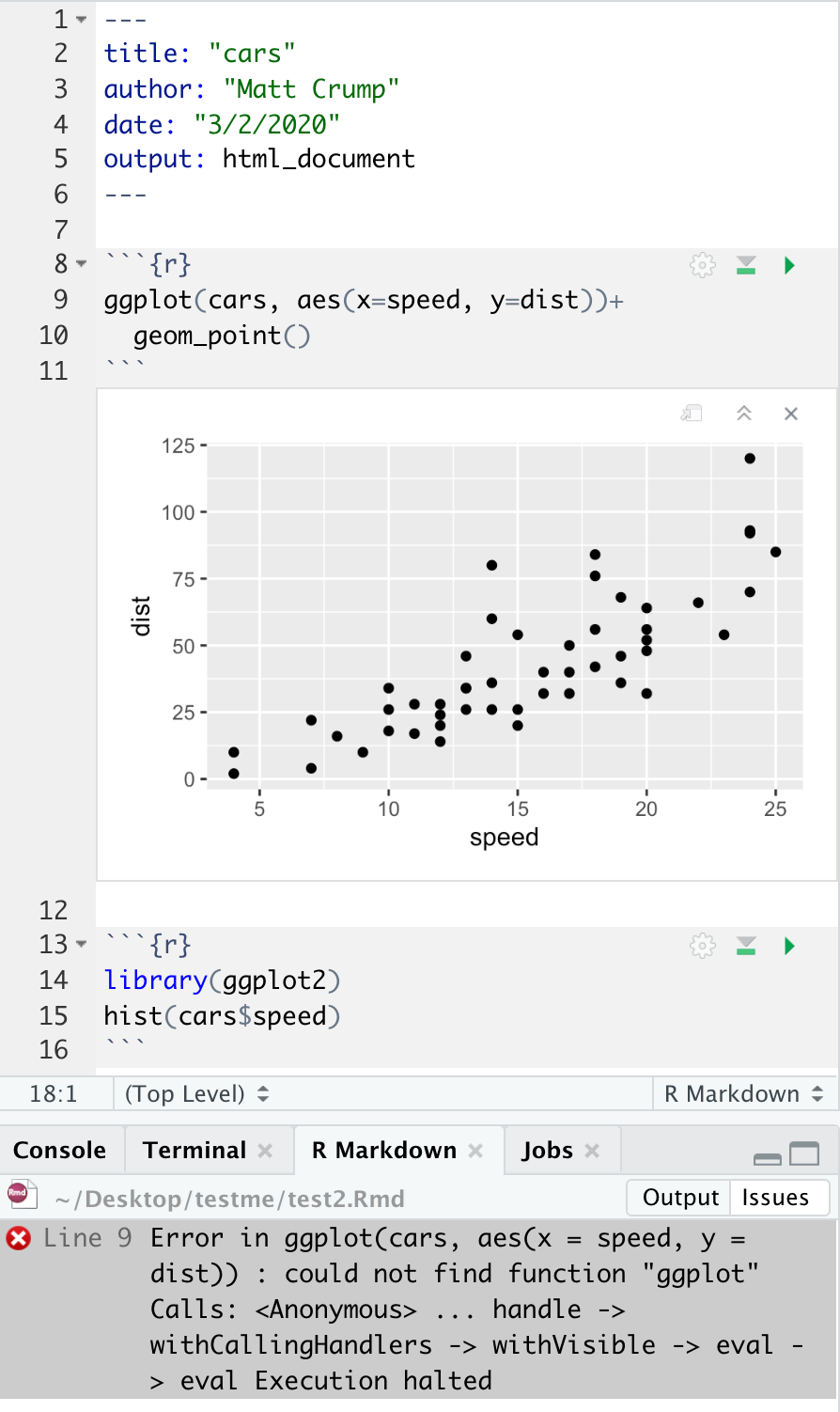

Why won’t this knit?

Pressing the play button might show the graph, but compiling fails when knitting the document?

the call to ggplot() occurs in chunk 1 before the package is loaded in chunk 2, causing an error.
The ggplot2 package may be loaded in the current R session, allowing it to run the first chunk.

Assorted info

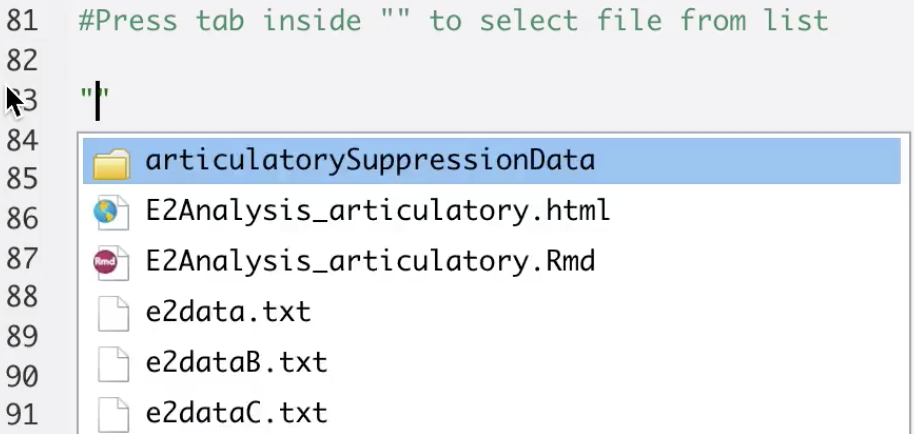

Hit tab inside quotations to search for files in RStudio

including external graphics
- knitr::include_graphics("path/name.ext")
math equations
- surround equations with dollar signs
- e.g., $\sum$ will be printed as $\sum$
HTML and Latex can be written directly
- e.g., <p> paragraph element </p> will be inserted as a new paragraph element
- Note: will only work if the hard coded elements are the same as the output type
Latex installation for pdf rendering
- Rendering pdfs requires a latex installation (full installations can be fairly large ~1 to 2 GB)
- I’d recommend following papaja recommendations here for installing latex https://crsh.github.io/papaja_man/introduction.html#software-requirements
- easy answer is install the tinytex package
- long answer is install a full latex distribution if you are going to be using latex outside of R.

Multi column

basic idea of rmarkdown
- Rstudio overview
make a new rmd
- working in a project
knitting
